Miller 20 Series Digital Wire Feeder

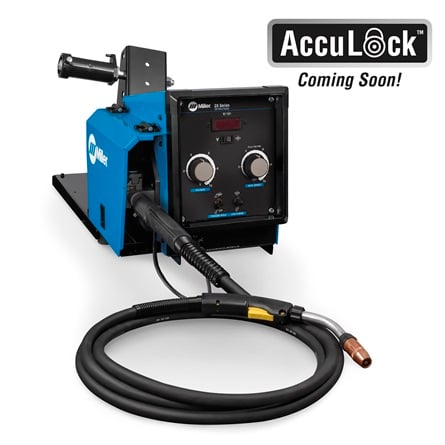

Description[vc_row][vc_column][vc_tta_tour active_section=”1″][vc_tta_section title=”Description” tab_id=”1669997112205-e3d44bc3-23c6″][vc_column_text]Miller 20 Series Digital Wire Feeder 951780  The Miller 20 Series Digital Wire Feeder comes standard with digital meter, remote voltage control capabilities and adjustable run-in control. It is a robust, industrial four drive roll wire feeder that comes complete with drive rolls and 300 amp MIG gun. The 20 Series features trigger hold, burn back control and has a 75-750 inches per minute wire feed speed capacity. It can feed MIG or flux-cored welding wire from .024 inch to 5/64 inch diameter.With Miller’s standard 14-pin interface connection, the 20 Series wire feeder is compatible with any Miller MIG welding power source that is equipped with a 14-pin receptacle. It is a direct replacement for Miller S-22A and S-24A wire feeders.[/vc_column_text][vc_column_text]WHAT’S INCLUDED20 Series Basic FeederBTB 300A GunCenterfire contact tips, .035 (QTY 3), .045 (QTY 2).035-.045 reversible dual V drive rollsCOMING SOONAccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!   Learn More Industrial DesignIdeal for most high-duty-cycle applications requiring day-in/day-out trouble-free operation. Motor Ramp and Burnback ControlProvides excellent wire starting and stopping performance. Four Gear-Driven Drive RollsProvide smooth, positive wire feeding for most wires. Trigger HoldAllows the operator to make long welds without having to hold the trigger continuously – reducing operator fatigue. Quick-Change Drive RollsSave time with standard, quick-change drive rolls. Standard 14 pin connectionEach feeder includes a 15-foot Bernard Q300 MIG gun, plus a 10-foot 14-pin interconnecting cord.[/vc_column_text][/vc_tta_section][vc_tta_section title=”Specifications” tab_id=”1604679959828-9ce4c8f3-67ce940f-11e16ab7-90d95402-7c0a”][vc_column_text]PRODUCT LITERATUREM/11.0 20 Series – EnglishPROCESSESFlux Cored (FCAW)MIG (GMAW)GENERAL SPECIFICATIONSTitle20 Series, Basic, Q3015, Drive Roll KitIndustries InterestsCommercial Truck and TrailerEducation / TrainingFabricationManufacturingRailcar[/vc_column_text][/vc_tta_section][vc_tta_section title=”Documents” tab_id=”1604679956790-193a91fd-6cd9940f-11e16ab7-90d95402-7c0a”][vc_column_text]Spec Sheet (English)[/vc_column_text][/vc_tta_section][vc_tta_section title=”What’s Included” tab_id=”1604682001647-2a0a53e0-624c940f-11e16ab7-90d95402-7c0a”][vc_column_text]WHAT’S INCLUDED20 Series Basic FeederBTB 300A GunCenterfire contact tips, .035 (QTY 3), .045 (QTY 2).035-.045 reversible dual V drive rolls[/vc_column_text][/vc_tta_section][/vc_tta_tour][/vc_column][/vc_row]
